48V 1000W Electric Bike Conversion Kit Rear Hub Motor | Greenlance Limited

Get 5% OFF by Signing up to our Newsletter

£313.49£329.99

What's included?

With a purchase of our E-Bike Controller you will receive:
1 x 27In Rear Hub Motor Wheel

1 x 30A Controller (Optional Upgrade Available)

1 x SW900 Display (Optional Upgrade Available)

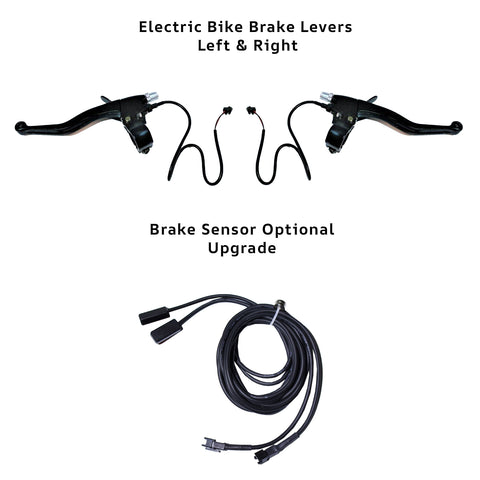

2 x Left & Right Brakes

1 x Controller Bag

1 x PAS Sensor

1 x Throttle - Choose desired throttle

1 x 2.1 Maxxiss Tyre 27.5IN
1 x 2.1 Inner Tube


Optional Items:
• Lights

• UKC1 Colour Display

• Brake Sensor

• Remote Control Speed Limit



Product Specification

Voltage: 48V

Wattage: 1000W
Speed: 30Miles (40km/h)
Controller: 30A Sine Wave Controller

Warranty & Returns

All products on Greenlance come with a 12-month warranty, Except our Batteries pack which come with 24 months warranty. Greenlance Limited provides warranty service for all Greenlance branded products. Customers can access warranty repairs for eligible products.

Products not covered by Warranty
Greenlance Limited reserve the right to deny the warranty services to products that have:
  • Products that have been repaired, disassembled, or reworked without authorization.
  • Have been subject to accidental damage or drop-related damage including but not limited to excessive pressure, improper voltage input, and cracks due to incorrect use.
  • Products are subject to damage resulting from improper use, installation, maintenance, and/or storage.
  • If products are subject to force majeure-related damage (fire, earthquake, flood, etc.).


Delivery

We dispatch our products on the same day if ordered before 4PM.


Orders after 4PM are dispatched on the next working day. UPS services are used to ship E-Bike Batteries which DO NOT operate on Saturday or Sunday!


The Shipping Time takes from 3-4 working days, where faster 1-2 working days services are available at extra cost!

Speed Disclaimer

Any e-bike conversion kit with a motor exceeding 250W or 25km/h, is not road legal in the UK unless used on private land with the landowner's permission.


By purchasing and installing a motor rated above 250W, the customer acknowledges and accepts full responsibility for operating the vehicle in compliance with local laws and regulations. This includes any accessories which could remove the restriction on 250W.

  • Rear Hub Motor
  • Controller
  • Display
  • THrottle
  • Lights

Category

48V 250W Motor

Brand

Greenlance

Wheel Size

27.5In Wheel

Package Size

65CM x 65CM x 25XM

Case Material

Aluminium Case

Certification

CE, MDSM

Position

Rear Hub Motor Wheel

Category

36-52V 17A Controller

Brand

Risun Motor

Controller Specification

Sine Wave Intelligent Controller. 250-1000W

Controller Size

208x107x60mm

Case Material

Aluminium Case

Certification

CE, MDSM

Included

Controller, Yellow Connection Box, Display

UKC1 Display

Features

Battery Charge Indication

Speed Level

Error Code

ABS Material

Waterproof

LCD Display

Integrated Gear Switching

USB Socket

Waterproof

Admin Menu

SW900 Display

SW900 Display

Features

Battery Charge Indication

Speed Level

Error Code

Plastic Material

Waterproof

X

X

X

X

X

Twist Throttle

Features

Same Connection Pin

15 * 3.5* 4.5 CM

36V-72V

Waterproof

160cm Cable

Grips Included

Thumb Throttle

Features

Same Connection Pin

3 * 3.5 * 4.5 CM

Error Code

Waterproof

160cm Cable

Plastic Material

Front Light

1500 Lumens

Back Light

900 Lumens

Voltage

24-72V

Left & Right Signalling

Signalling Installed within the Rear Lights

Battery Material

Aluminium Case

Awareness Sound

Awareness Sound on the control menu

Certification

CE, MDSM

  • Hub Motor
  • Controller
  • Display
  • Throttle
  • Lights

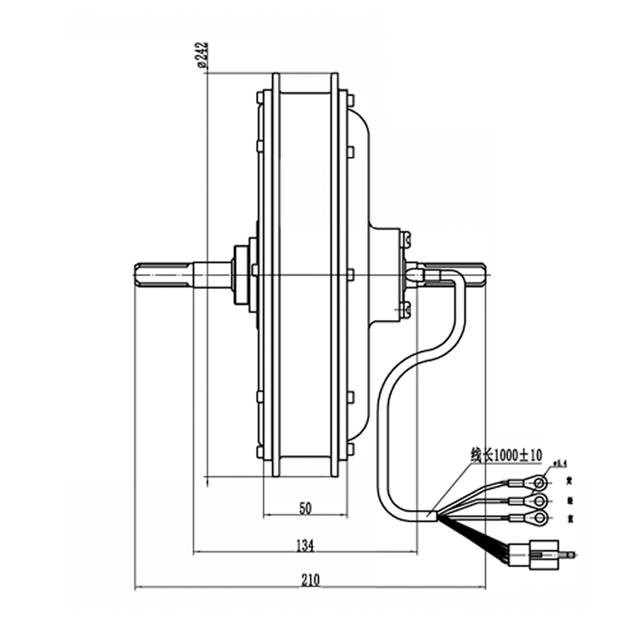

48V 1000W electric Bike conversion kit rear hub mootor diagram

Category

48V 1000W Rear Hub Motor

Brand

Greenlance

Wheel Size

Sine Wave Intelligent Controller. 250-300W

Package Size

65CM x 65CM x 25CM

Case Material

Aluminium Case

Certification

CE, MDSM, UKCA

Position

Rear Hub Motor - Wheel

Electric Bike controller 30A

Category

36-72V 30A Controller

Brand

Risun Motor

Controller Specification

Sine Wave Intelligent Controller. 250-1000W

Controller Size

208x107x60mm

Case Material

Aluminium Case

Certification

CE, MDSM

Included

Controller, Yellow Connection Box, Display

UKC1 Display

SW900 Display (included)

UKC1 Display EBike

Features

Battery Charge Indication

Speed Level

Error Code

ABS Material

Waterproof

LCD Display

Integrated Gear Switching

USB Socket

Waterproof

Admin Menu

Features

Battery Charge Indication

Speed Level

Error Code

Plastic Material

Waterproof

X

X

X

X

X

electric bike SW900 Display

Twist Throttle

Thumb Throttle

Twist Throttle

Features

Same Connection Pin

15 * 3.5* 4.5 CM

36V-72V

Waterproof

160cm Cable

Grips Included

Features

Same Connection Pin

3 * 3.5 * 4.5 CM

Error Code

Waterproof

160cm Cable

Plastic Material

Thumb Throttle Ebike

Upgrade your riding with Brightness

Electric Bike Front and Rear Lights system

Front Light

1500 Lumens

Back Light

900 Lumens

Voltage

24-72V

Left & Right Signalling

Signalling Installed within the Rear Lights

Battery Material

Aluminium Case

Awareness Sound

Awareness Sound on the control menu

Certification

CE, MDSM

24/7 Customer service

Built for a sustainable and greener way of transportation

Free shipping nationwide

Delivery is on us for all orders within the UK

2 Years Warranty

High-quality electric bike conversion kit - Electric Bike Rear Hub Motor

Easy Installation Method

1. Can I change the controller of my ebike?

The Electric Bike controller comes with label for each wire. It describes what is this wire for. Their connectors are designed to match as long as its an item from our ebike controller set. Your Controller can be upgraded to different currents. Please contact us for more information.

2. What each number of the image mean?

The numbers stand for the different components on the ebike system:


1. Power Supply: XT60 Male Plug (Yellow)

2. Motor Cable 3-Phase Connection: “O” Ring Connection on Controller 3-Phase

3. Motor Cable Hall Sensor Connection: White DJ7061Y-2.8-21 Female Plug

4. LCD Control Panel Connection: Black SM-5A Male plug

5. Throttle Connection: Black SM-3Y Female Plug

6. Electric Lock: White 2.8B-2 Female plug

7. Brake Levers Connection: 2 x Black SM-2Y Female plugs

8. PAS Connection: Black SM-3A Male plug

9.  Speed Limit Connection: Black SM-2Y Female plug

10. Alarm Connection: Red DJ7021A-2.8-11 Male, Red DJ7021Y-2.8-21 Female Plugs

11. Head Light Connection: Black SM-2A Male (Black) plug

12.  Bluetooth Connection:


3. Is there any video to use as guidance?

4. What additional items I can add to my controller?

The controller can be customised with or without Lights. Different type of display LCD or Standard. The throttle can be customised and we have other add-ons which can be requested from us if not listed on the website.

5. How to keep my controller safe?

We offer waterproof Bag for your electric bike. It can protect your controller from all weather conditions and keep it dust free. Find out more about the controller bag here:

Waterproof Controller Bag - Click Here

E-Bike Controller Labelling

Electric Bike Controller Wiring diagram
