E-Bike Controller 36V-72V 35-80A

£63.99
set

Voltage & Current

Display

Throttle

What's included?

With a purchase of our E-Bike Controller you will receive:
1 x Controller

1 x Yellow Connection Box

Optional Items:
• Lights

• Display

• Throttle

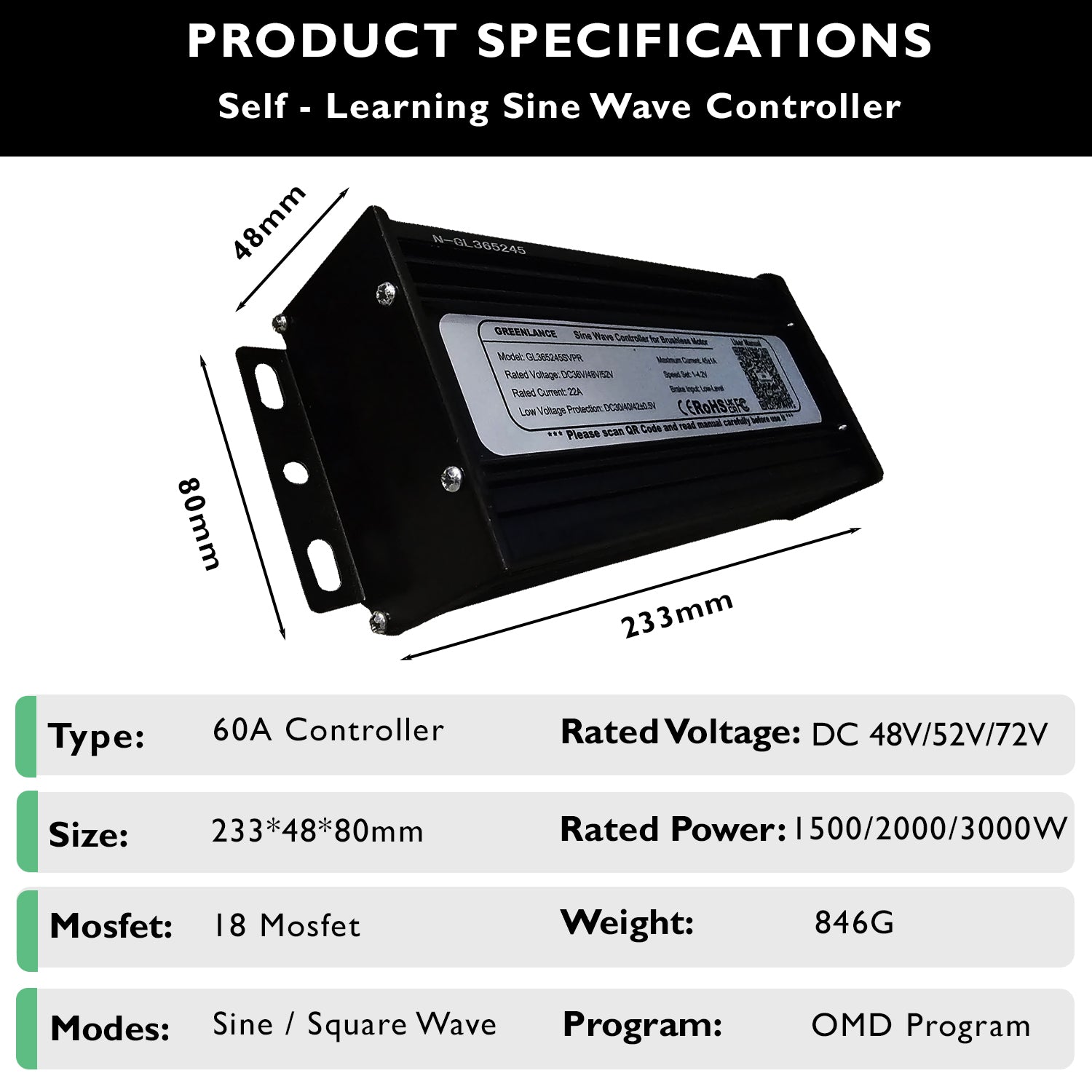

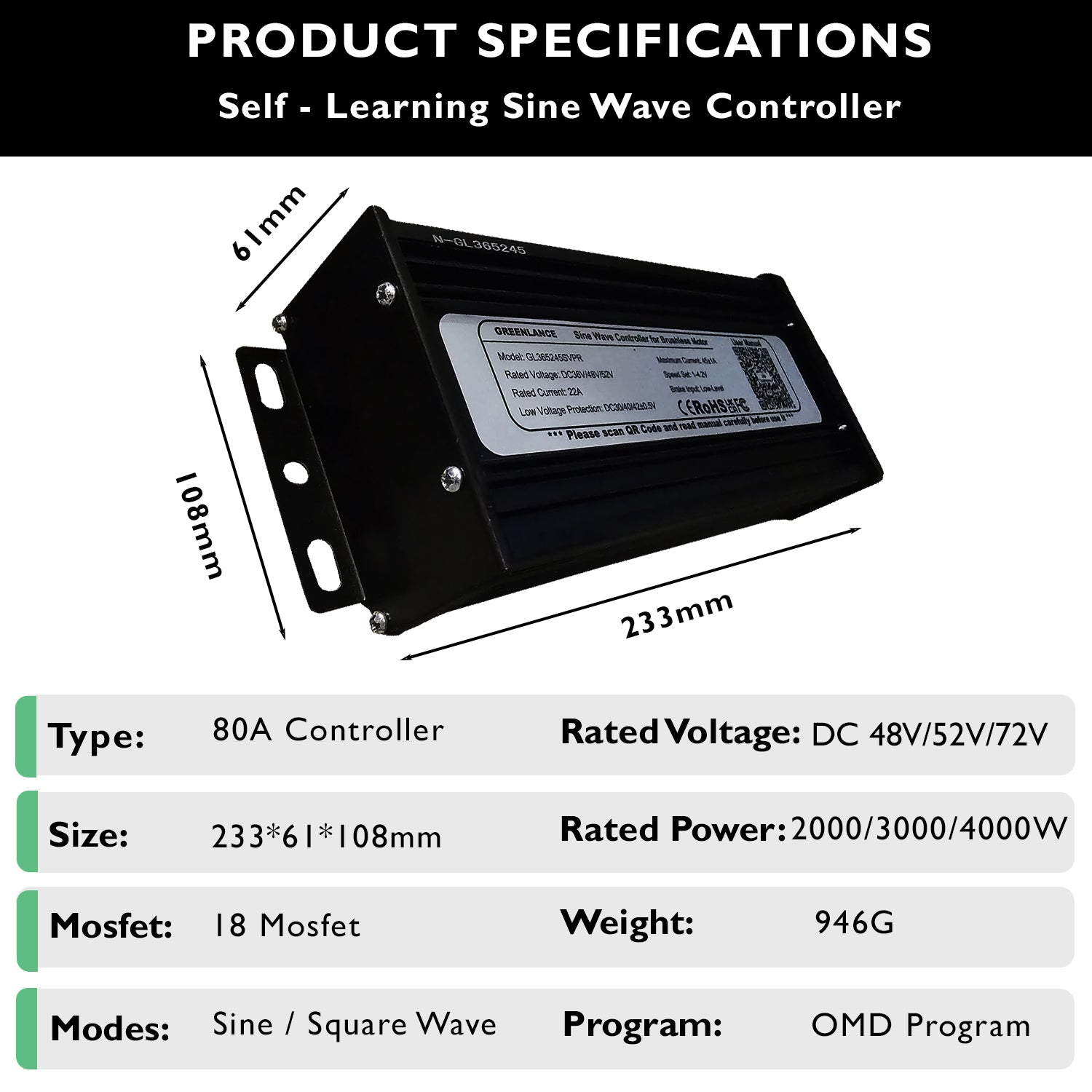

Product Specification

Voltage: 36V-72V (depending on your selection)

Current: 35-80A
Program: OMD Communicational Protocol
Operational System:

- Sine Wave Smart Controller with Learning line features to help integrate errors in installation and damaged wires.
- Aluminium Heat Sink Casing for Cooling efficiency

Mosfets: 15-18 (depending on model)

Warranty & Returns

All products on Greenlance come with a 12-month warranty, Except our Batteries pack which come with 24 months warranty. Greenlance Limited provides warranty service for all Greenlance branded products. Customers can access warranty repairs for eligible products.

Products not covered by Warranty

Greenlance Limited reserve the right to deny the warranty services to products that have:

Products that have been repaired, disassembled, or reworked without authorization.
Have been subject to accidental damage or drop-related damage including but not limited to excessive pressure, improper voltage input, and cracks due to incorrect use.
Products are subject to damage resulting from improper use, installation, maintenance, and/or storage.
If products are subject to force majeure-related damage (fire, earthquake, flood, etc.).

Delivery

We dispatch our products on the same day if ordered before 12PM.

Orders after 4PM are dispatched on the next working day. UPS services are used to ship E-Bike Batteries which DO NOT operate on Saturday or Sunday!

EVRI is used to ship all Accessories from Greenlance Website!

The Shipping Time takes from 5-7 working days, where faster 1-2 working days services are available at extra cost!

Controller
Display
ThWaterproofrottle
Lights

UKC1 Display

Name: E-Bike Controller 36V-72V 35-80A
Brand: Greenlance Limited
Price: 63.99 GBP
Availability: InStockOutOfStock

Features

Battery Charge Indication

Speed Level

Error Code

ABS Material

Waterproof

LCD Display

Integrated Gear Switching

USB Socket

Waterproof

Admin Menu

SW900 Display

Features

Battery Charge Indication

Speed Level

Error Code

Plastic Material

Waterproof

Twist Throttle

Features

Same Connection Pin

15 * 3.5* 4.5 CM

36V-72V

Waterproof

160cm Cable

Grips Included

Thumb Throttle

Features

Same Connection Pin

3 * 3.5 * 4.5 CM

Error Code

Waterproof

160cm Cable

Plastic Material

Front Light

1500 Lumens

Back Light

900 Lumens

Voltage

24-72V

Left & Right Signalling

Signalling Installed within the Rear Lights

Battery Material

Aluminium Case

Awareness Sound

Awareness Sound on the control menu

Certification

CE, MDSM

Controller
Display
Throttle
Lights

UKC1 Display

SW900 Display

Features

Battery Charge Indication

Speed Level

Error Code

ABS Material

Waterproof

LCD Display

Integrated Gear Switching

USB Socket

Waterproof

Admin Menu

Features

Battery Charge Indication

Speed Level

Error Code

Plastic Material

Waterproof

Twist Throttle

Thumb Throttle

Features

Same Connection Pin

15 * 3.5* 4.5 CM

36V-72V

Waterproof

160cm Cable

Grips Included

Features

Same Connection Pin

3 * 3.5 * 4.5 CM

Error Code

Waterproof

160cm Cable

Plastic Material

Upgrade your riding with Brightness

Front Light

1500 Lumens

Back Light

900 Lumens

Voltage

24-72V

Left & Right Signalling

Signalling Installed within the Rear Lights

Battery Material

Aluminium Case

Awareness Sound

Awareness Sound on the control menu

Certification

CE, MDSM

24/7 Customer service

Built for a sustainable and greener way of transportation

Free shipping nationwide

Delivery is on us for all orders within the UK

2 Years Warranty

1500 lifecycles guarantee to exceed expectations

Easy Installation Method

1. Can I change the controller of my ebike?

The Electric Bike controller comes with label for each wire. It describes what is this wire for. Their connectors are designed to match as long as its an item from our ebike controller set.

2. What each number of the image mean?

The numbers stand for the different components on the ebike system:

1. Power Supply: XT60 Male Plug (Yellow)

2. Motor Cable 3-Phase Connection: “O” Ring Connection on Controller 3-Phase

3. Motor Cable Hall Sensor Connection: White DJ7061Y-2.8-21 Female Plug

4. LCD Control Panel Connection: Black SM-5A Male plug

5. Throttle Connection: Black SM-3Y Female Plug

6. Electric Lock: White 2.8B-2 Female plug

7. Brake Levers Connection: 2 x Black SM-2Y Female plugs

8. PAS Connection: Black SM-3A Male plug

9. Speed Limit Connection: Black SM-2Y Female plug

10. Alarm Connection: Red DJ7021A-2.8-11 Male, Red DJ7021Y-2.8-21 Female Plugs

11. Head Light Connection: Black SM-2A Male (Black) plug

12. Bluetooth Connection:

3. Is there any video to use as guidance?

4. What additional items I can add to my controller?

The controller can be customised with or without Lights. Different type of display LCD or Standard. The throttle can be customised and we have other add-ons which can be requested from us if not listed on the website.

5. How to keep my controller safe?

We offer waterproof Bag for your electric bike. It can protect your controller from all weather conditions and keep it dust free. Find out more about the controller bag here:

Waterproof Controller Bag - Click Here

6. Download 35,45,60,80A Current Controller Guidance & Manual

Please use the following Guidances & Manuals to install the controller onto your E-Bike, Scooter or Motor.

Controller Guidance - Click Here
